| BASIC INFO |
| Model No. |

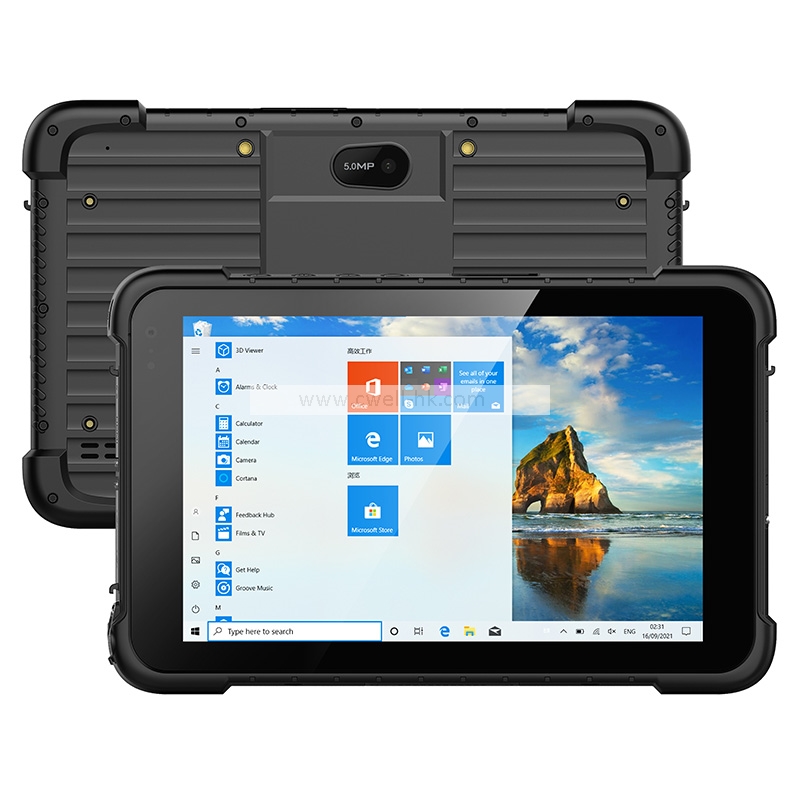

WinPad
W86H |
| Operation system |
Windows
10 home or Android 5.1 (Windows 10 Pro is optional) |
| Dimension |
228*145*16.5mm |
| Net weight |
630g |
| Gross weight |
1330g(Unit
with giftbox and standard accessories), docking：290g |
| Color |
Bottom
shell: silver, front shell: black; all black is optional |
| Languages |
Multi-languages |
| HARDWARE |
| Display |
8.0
inch 16:10 anti-scratched IPS capactive touch screen, 800*1280px, 320Nit,
support handwriting |
| CPU |
Intel
Cherrytrail Z8350, 1.44Ghz~1.92Ghz |
| GPU |
Intel
HD Graphics |
| RAM |
4GB
DDR3L |
| ROM |
64GB
EMMC, support SDHC/SDXC card up to 128GB max |
| Camera |
Front
camera: 2.0MP with indicator light, rear camera: 5.0MP |
| Battery |
Built-in
3.7V/8500mAh polymer li-ion battery (If use 4G configuration, battery
capacity is 7800mAh) |
| Sensors |
G-sensor |
| NETWORK & CONNECTIVITY |
| Band |
2G:
GSM/GPRS/EDGE 850 MHz/900MHz/1800 MHz/1900 MHz |
| 3G: WCDMA 850/900/1900/2100MHz |
| 4G: FDD-LTE
B1/B2/B3/B4/B5/B7/B8/B20, all bands with diversity |
| WIFI |
IEEE
802.11(a/b/g/n/c), support dual-band
Wi-Fi( 2.4G+5G) |
| BT |
V4.0
(BLE) class1.5 transmission distance：10m |
| NFC |
NXP
NFC, Card reading distance：4cm |
| GNSS |
Built-in
U-blox NEO-7 module, support GPS/GLONASS/QZSS |
| I/O INTERFACES |
| TF card |
x1 |
| ∮3.5mm earphone port |
x1 |
| 12pin Pogo Pin |
x1 |
| USB
port |
USB
2.0*1 （Host）for windows Android OTG
x1 |
| HD-MI port |
V1.4a
Type Cx1 |
| DC jack |
5V/3A
∮3.5mm Power connector x1 |
| Speaker |
Embedded
8Ω/0.8W waterproof speaker x 1 |
| Mic |
Sensitivity:-42db,
output resistance 2.2kΩ |
| RELIABILITY |
| Waterproof |
IP67 |
| Drop-proof |
MIL-STD-810G,
1.2m, composite wood floors, in operation status |
| Temperature range |
Working
temperature: '-10 °C~50 °C (-20 °C~60 °C is optional; Storage temperature: '-30 °C~70 °C |
| Humidity range |
95%
Non-Condensing |
| OPTIONAL FUNCTION |
| 1D Module |
MOTO SE655E100R |
| 2D Module |
MOTO SE4710
Hardware decoder |
| ACCESSORIES |
| OTG
cable |
x1 |
| USB cable |
x1 |
| Power adaptor |
x1
(5V/3A) |
| Charger docking |
Optional |
