| BASIC INFO |
| Model No. |

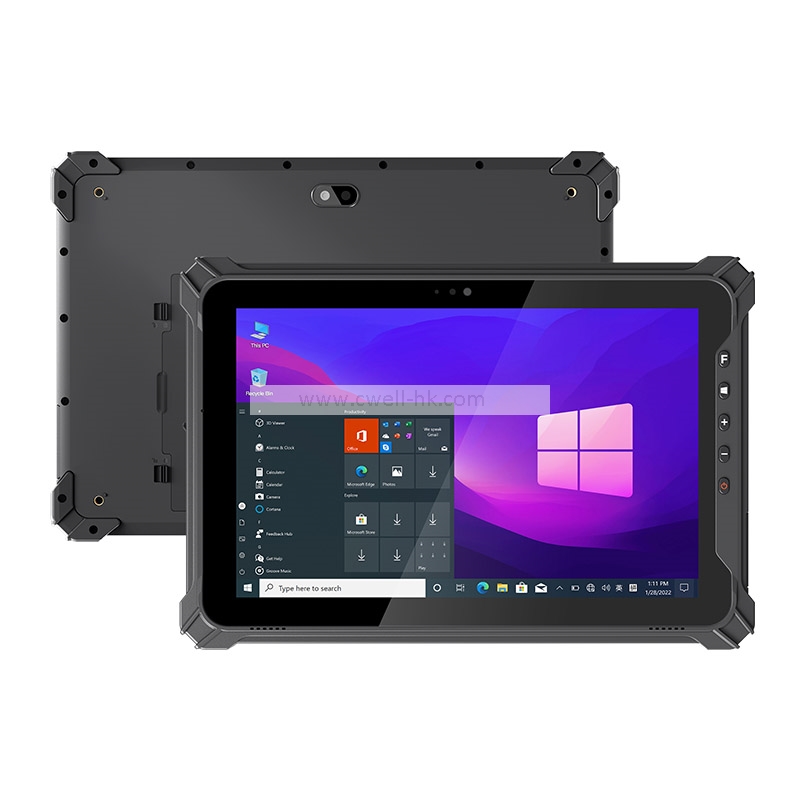

WinPad
W117 |
| Operating System |
Windows
11 Pro (Win 10 home/ iOT optional) |
| Dimension |
274.9*188.7*23.1mm |
| Weight |
1140g
(include battery) |
| Color |
Black |
| Language |
Multi-language |
| HARDWARE |
| Screen |
10.1
inch 7H hardness glass IPS capacitive screen, 1280*800px, 700cd/m2 |
| Processor |
Intel
JASPER LAKE N5100 quad core, 2.8GHz; GPU: Intel HD Graphics Gen 11 LP |
| RAM |
8GB
LPDDR3 |
| ROM |
128GB
EMMC, support Micro SD card up to 512GB maximally |
| Camera |
Double
cameras: 5.0MP front, 8.0MP AF rear camera with flashlight |
| Battery |
Built-in
3V/1mAh battery+ removable 7.6V/5000mAh Li-Polymer battery |
| G-sensor |
Support |
| Speaker |
Embedded
8Ω/1W speaker*2 |
| LED Indicator |
RGB |
| Mic |
Single
MIC |
| Keys |
Custom
button*1, Power key*1, Volume key+/-*1, Home key*1 |
| NETWORK & CONNECTIVITY |
| Network Bands |
2G
GSM900/1800MHz |
| 3G WCDMA850/900/2100MHz |
| 4G FDD-LTE B1/B3/B5/B7/B8/B20, TDD-LTE:
B40 (American Bands Module Optional) |
| WiFi |
IEEE
802.11a/b/g/n/ac, support 2.4G/5.8GHz dual band WiFi |
| BT |
V4.2(BLE),
transmission distance: up to 10 meters |
| GNSS |
Support
GPS/A-GPS/Beidou/GLONASS |
| I/O INTERFACES |
| Micro SD slot |
*1 |
| Nano SIM slot |
*1 |
| USB Type-A 3.0 |
*1 |
| USB Type-C 2.0 |
*1 |
| 3.5mm Audio Jack |
*1 |
| Mini HD-MI 1.4a |
*1 |
| 12pin Pogo Pin |
*1 |
| OPTIONAL FUNCTIONS |
| 2D barcode scanning |
Optional
(Honeywell N3680) |
| NFC |
Optional
(Support 14443A/14443B/15693/18092/mifare protocol) |
| RJ45/DB9/USB-A 2.0 |
Optional |
| RELIABILITY |
| Waterproof |
IP65/MIL-STD-810G |
| Drop-proof |
1.22m
drop |
| Electrostatic discharge |
±
8KV contact discharge, ± 10kV air discharge |
| Temperature range |
Operating:
'-20 °C to 60 °C, storage: '-30 °C to 70 °C |
| Humidity range |
95%
Non-Condensing |
| STANDARD ACCESSORIES |
| Power Adaptor (19V/3.42A) |
*1 |
| Hand Strap |
*1 |
| USB cable |
*1 |
| Charging Dock |
Optional |
| Car Charger |
Optional |
| Shoulder
Strap |
Optional |
